Eu3PbO (#2.103)

view in Jmol
Download mcif file
Download vesta file (all atoms)
Download vesta file (magnetic atoms only)

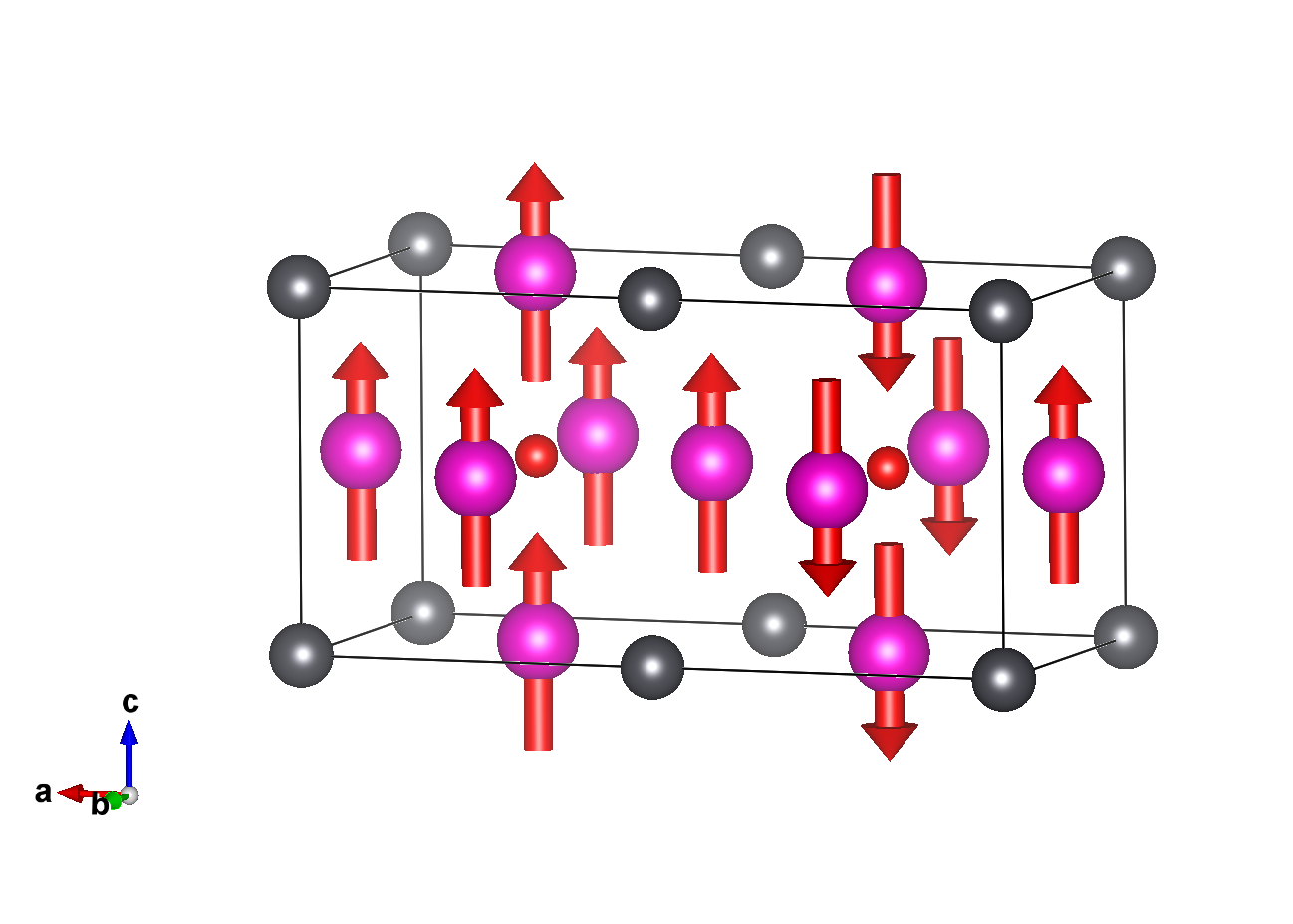

Magnetic structure with all atoms

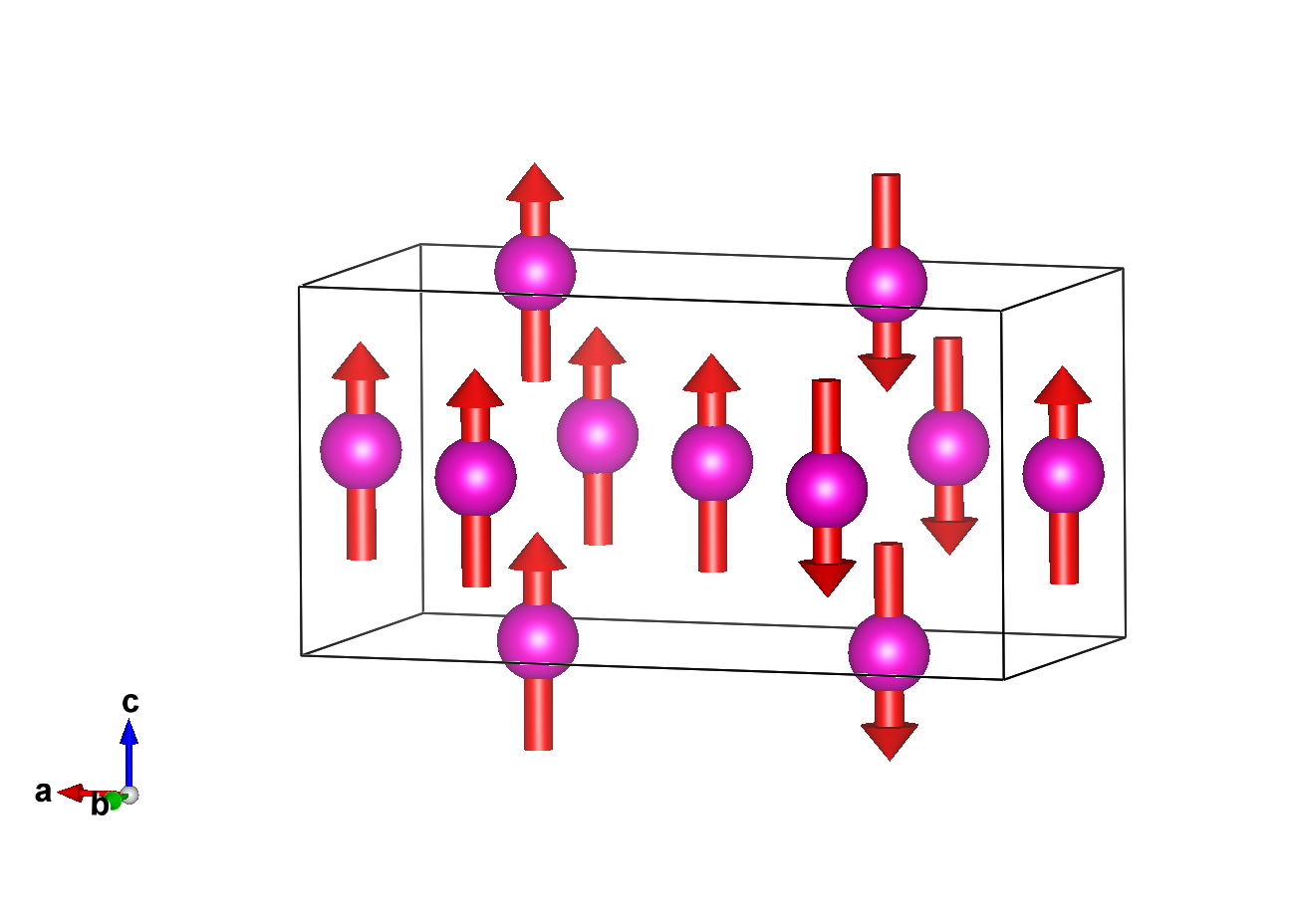

Magnetic structure with only magnetic atoms

Reference: M. M. Hirschmann, A. S. Gibbs, F. Orlandi, D. Khalyavin, P. Manuel, V. Abdolazimi, A. Yaresko, J. Nuss, H. Takagi, A. P. Schnyder, A. W. Rost, PHYSICAL REVIEW MATERIALS (2022) 6 114202
DOI: 10.1103/PhysRevMaterials.6.114202
Atomic positions from: same reference

Parent space group (paramagnetic phase): Pm-3m (#221)
Propagation vector(s):
k1 (1/2, 0, 0)
k2 (0, 0, 0)
Experiment Temperature: 1.5(8T) K

Lattice parameters of the magnetic unit cell:
10.15640 5.07820 5.07820 90.00 90.00 90.00
Transformation from parent structure: (2a,b,c;0,0,0)
    [View matrix form]

BNS Magnetic Space Group: Pm'm'm (#47.252) (non-standard)
    [View symmetry operations]
Transformation to a standard setting: (a,b,c;1/4,0,0)
    [View matrix form]
Systematic absences for this Magnetic Space Group via

Magnetic Point Group: m'm'm (8.4.27)
    [View symmetry operations]
Symmetry-adapted form of material tensors via
Symmetry-adapted form of material tensors for domain-related equivalent structures via

Positions and magnetic moments of symmetry independent atoms:
From now on, magnetic atoms are in boldface and colored in red. Magnetic moments are expressed in units of μB

     [Show only magnetic atoms]                                             Use MVISUALIZE to:
     [Show all the atoms]

LabelAtom typexyzMultiplicitySymmetry constraints on MMxMyMz|M|

    [Show all magnetic atoms in unit cell and their moment relations]

Active Irreps:
Irrep decomposition via

labeldim. full irrepdim. small irrepdirectionactionnumber of modespresence
mX5- 6 2 special primary 2
mGM4+ 3 3 special primary 2
mGM5+ 3 3 special secondary? 1 YES

Comments (symmetry):
