MAGNDATA: A Collection of magnetic structures with portable cif-type files

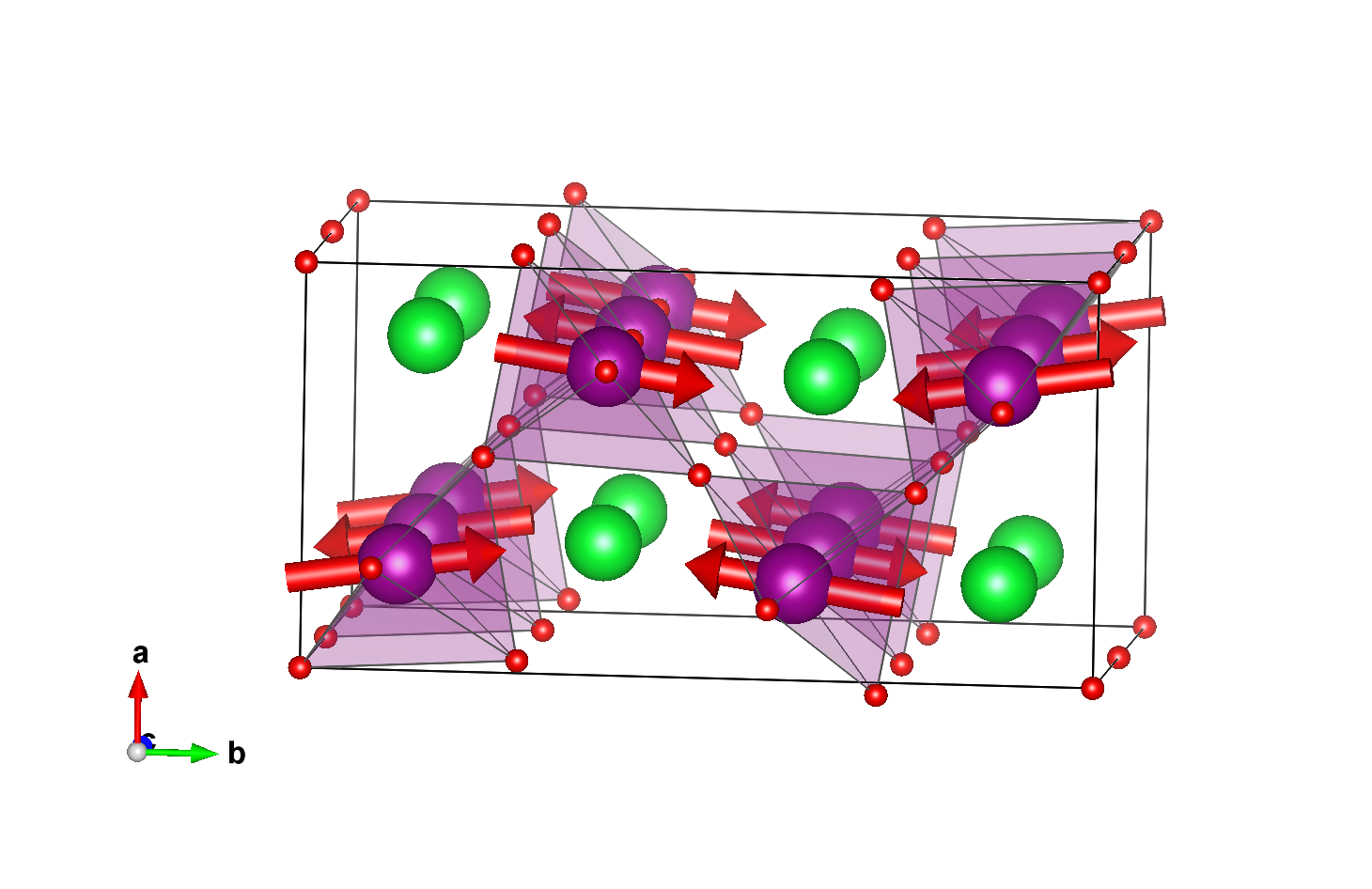

Magnetic structure with all atoms

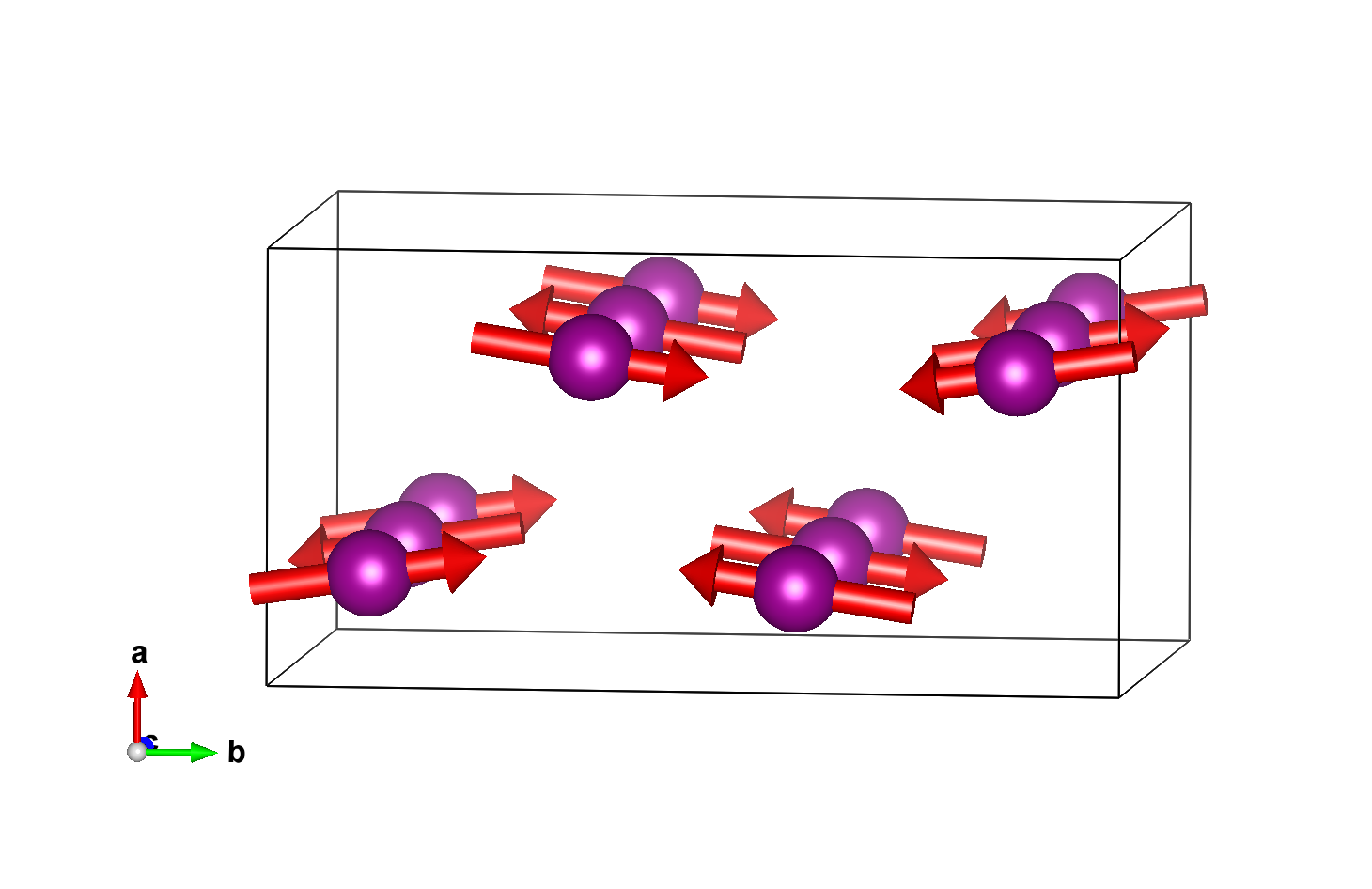

Magnetic structure with only magnetic atoms

Reference: V. Caignaert, J. Magn. Magn. Mater. (1997) 166 117 - 123
DOI: 10.1016/S0304-8853(96)00455-6
Atomic positions from: same reference

Parent space group (paramagnetic phase): Pbam (#55)
Propagation vector: k1 (0, 0, 1/2)

Transition Temperature: 390 K
Experiment Temperature: 4.2 K

Lattice parameters of the magnetic unit cell:
5.51045(8) 10.75403(16) 7.61716(11) 90.0000 90.0000 90.0000
Transformation from parent structure: (a,b,2c;0,0,0)
    [View matrix form]

BNS Magnetic Space Group: P_cbam (#55.361) (non-standard)
    [View symmetry operations]
Transformation to a standard setting: (a,b,c;0,0,1/4)
    [View matrix form]
Systematic absences for this Magnetic Space Group via

Magnetic Point Group: mmm1' (8.2.25)
    [View symmetry operations]
Symmetry-adapted form of material tensors via
Symmetry-adapted form of material tensors for domain-related equivalent structures via

Positions and magnetic moments of symmetry independent atoms:
From now on, magnetic atoms are in boldface and colored in red. Magnetic moments are expressed in units of μB

     [Show only magnetic atoms]                                             Use MVISUALIZE to:
     [Show all the atoms]

Label	Atom type	x	y	z	Multiplicity	Symmetry constraints on M	M_x	M_y	M_z	\|M\|
Mn	Mn	0.2612(10)	0.1204(4)	0.00000	8	m_x,m_y,0	0.53(7)	3.44(3)	0.0	3.48

[Show all magnetic atoms in unit cell and their moment relations]

Active Irreps:

label	dim. small irrep	dim. full irrep	action	number of modes
mZ2-	1	1	primary	2

Comments:

NPD

Comments (symmetry):

1k magnetic structure
k-maximal magnetic symmetry
1-dim irrep
