CeRh0.25Pd0.75Sn (#1.737)

view in Jmol
Download mcif file
Download vesta file (all atoms)
Download vesta file (magnetic atoms only)


working...

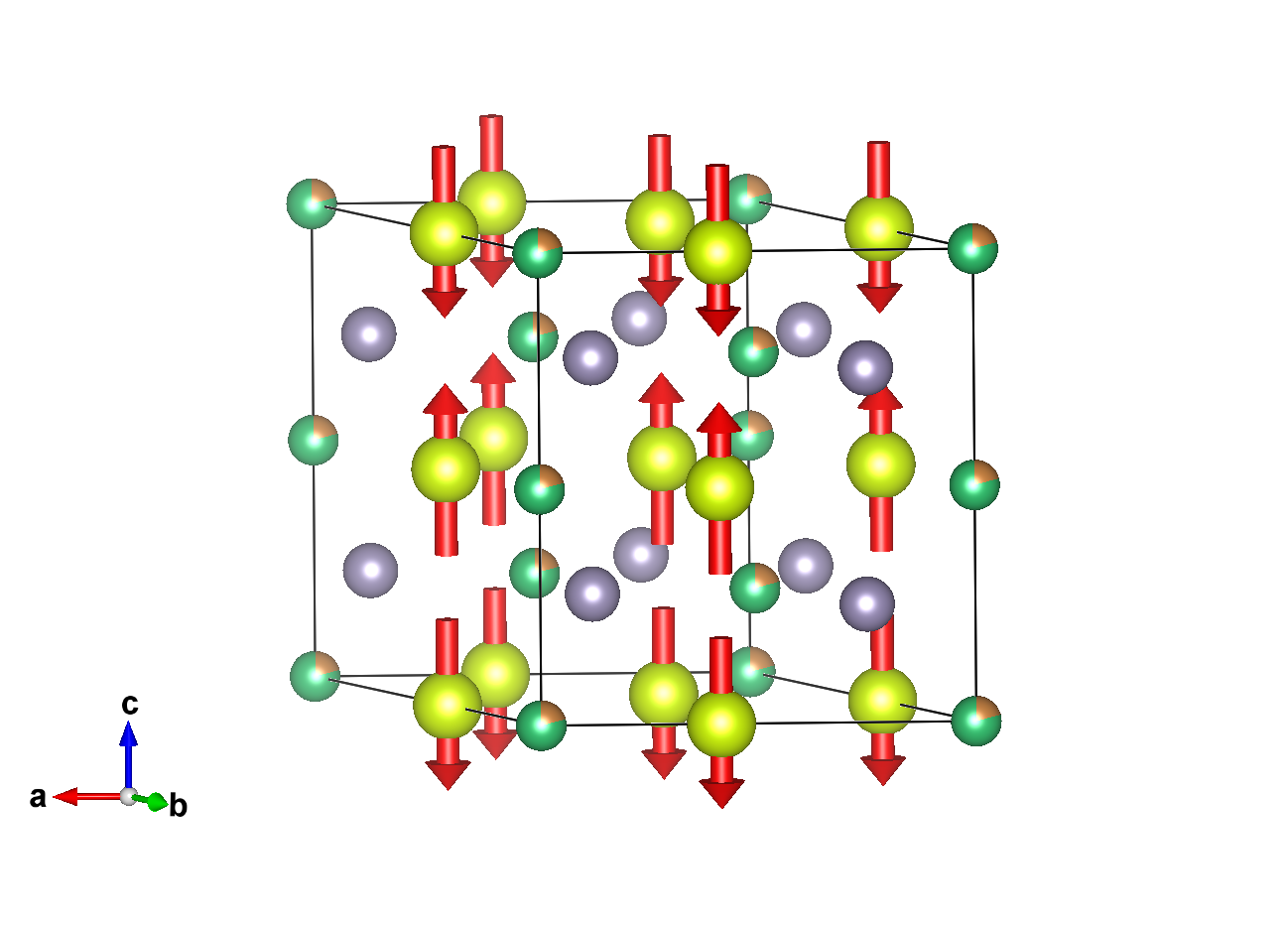

Magnetic structure with all atoms

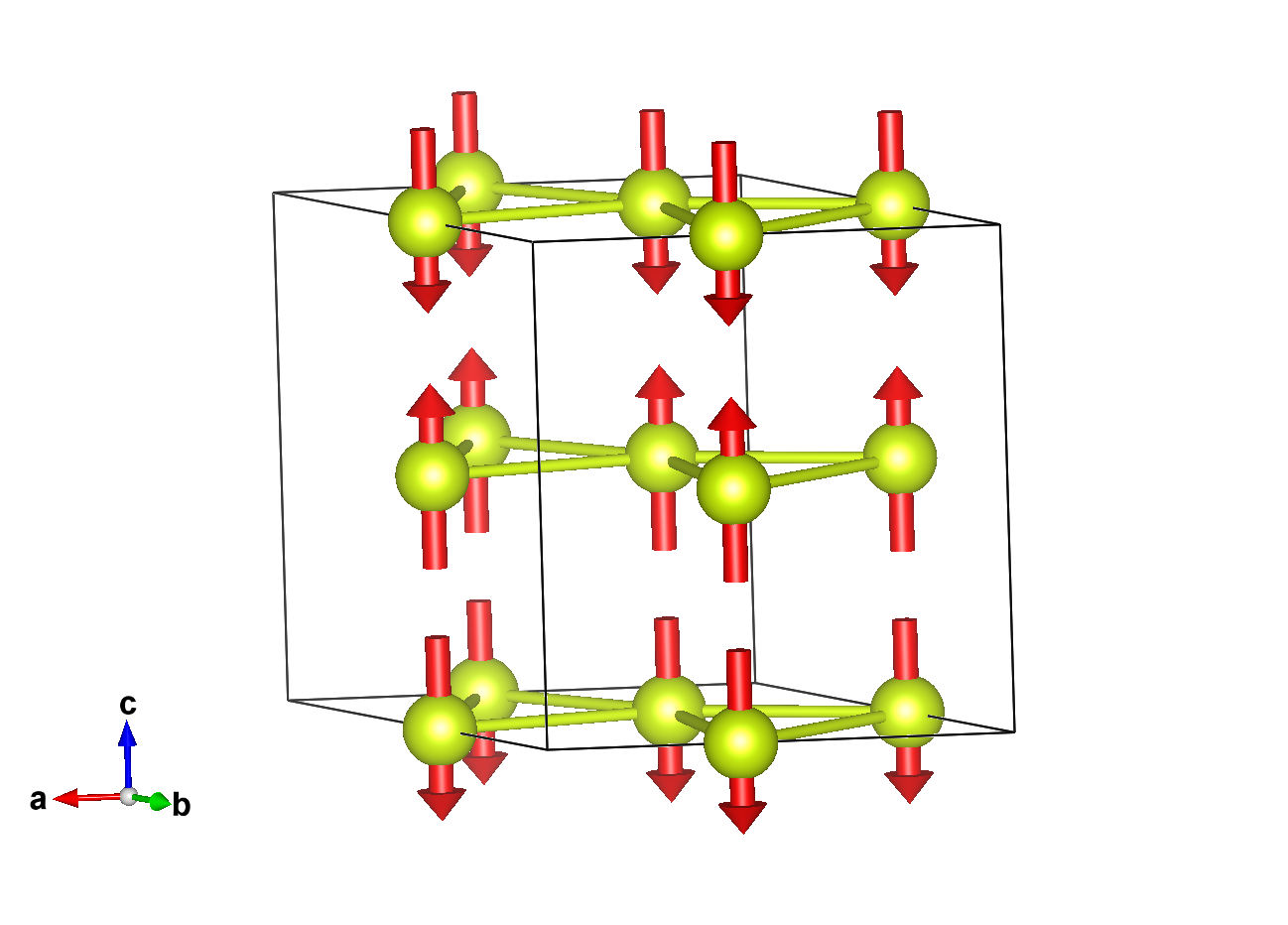

Magnetic structure with only magnetic atoms


Reference: R. Tripathi, D.T. Adroja, C. Ritter, S. Sharma, C. Yang, A.D. Hillier, M. Koza, F. Demmel, A. Sundaresan, S. Langridge, W. Higemoto, T.U. Ito, A.M. Strydom, G.B.G. Stenning, A. Bhattacharyya, D. Keen, H.C. Walker, R.S. Perry, F. Pratt, Q. Si, T. Takabatake, Phys. Rev. B (2022) 106 064436
DOI: 10.1103/PhysRevB.106.064436
Atomic positions from: same reference

Parent space group (paramagnetic phase): P-62m (#189)
Propagation vector: k1 (0, 0, 1/2)

Transition Temperature: 1.3 K
Experiment Temperature: 0.5 K

Lattice parameters of the magnetic unit cell:
7.53050 7.53050 8.25260 90.00000 90.00000 120.00000
Transformation from parent structure: (a,b,2c;0,0,0)
    [View matrix form]

BNS Magnetic Space Group: Pc-62c (#190.232) (non-standard)
    [View symmetry operations]
Transformation to a standard setting: (a,b,c;0,0,1/4)
    [View matrix form]
Systematic absences for this Magnetic Space Group via

Magnetic Point Group: -6m2.1' (26.2.96)
    [View symmetry operations]
Symmetry-adapted form of material tensors via
Symmetry-adapted form of material tensors for domain-related equivalent structures via

Positions and magnetic moments of symmetry independent atoms:
From now on, magnetic atoms are in boldface and colored in red. Magnetic moments are expressed in units of μB

     [Show only magnetic atoms]                                             Use MVISUALIZE to:
     [Show all the atoms]


LabelAtom typexyzMultiplicitySymmetry constraints on MMxMyMz|M|
Ce1Ce0.585700.000000.0000060,0,mz0.00.0-1.37(1)1.37

    [Show all magnetic atoms in unit cell and their moment relations]



Active Irreps:
Irrep decomposition via


labeldim. small irrepdim. full irrepactionnumber of modes
mA4 1 1 primary 1


Comments:
Comments (symmetry):
