MAGNDATA - Collection of Magnetic Structures

Symmetry operations of the magnetic space group in the setting used:

[Hide]

Symmetry operations of the magnetic point group in the setting used:

[Hide]

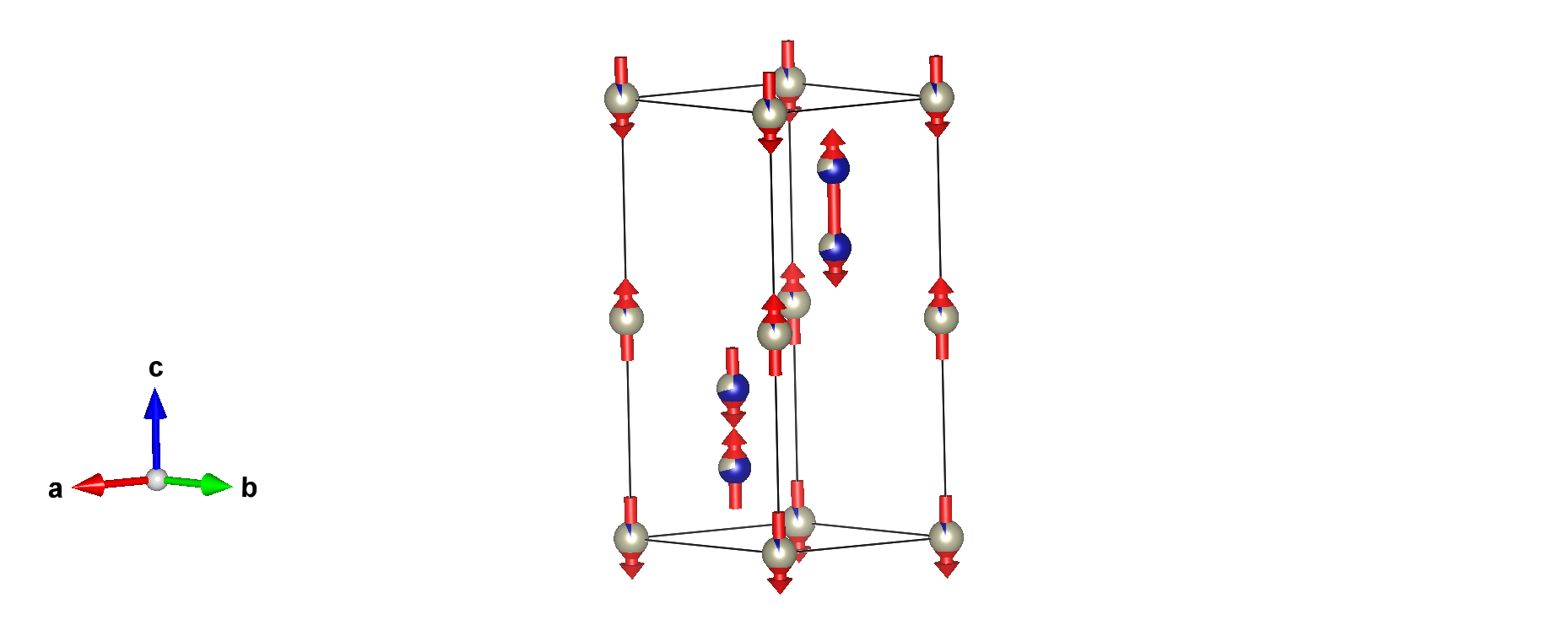

Magnetic atoms:

Label	Atom type	x	y	z	Occupancy	Multiplicity	Symmetry constraints on M	M_z	\|M\|
Re1	Re	0.00000	0.00000	0.00000	0.933	2	0,0,m_z	-1.14	1.14
Cr1	Cr	0.00000	0.00000	0.00000	0.067	2	0,0,m_z	-2.53	2.53
Cr2	Cr	0.33333	0.66667	0.84030	0.716	4	0,0,m_z	2.53	2.53
Re2	Re	0.33333	0.66667	0.84030	0.284	4	0,0,m_z	1.14	1.14

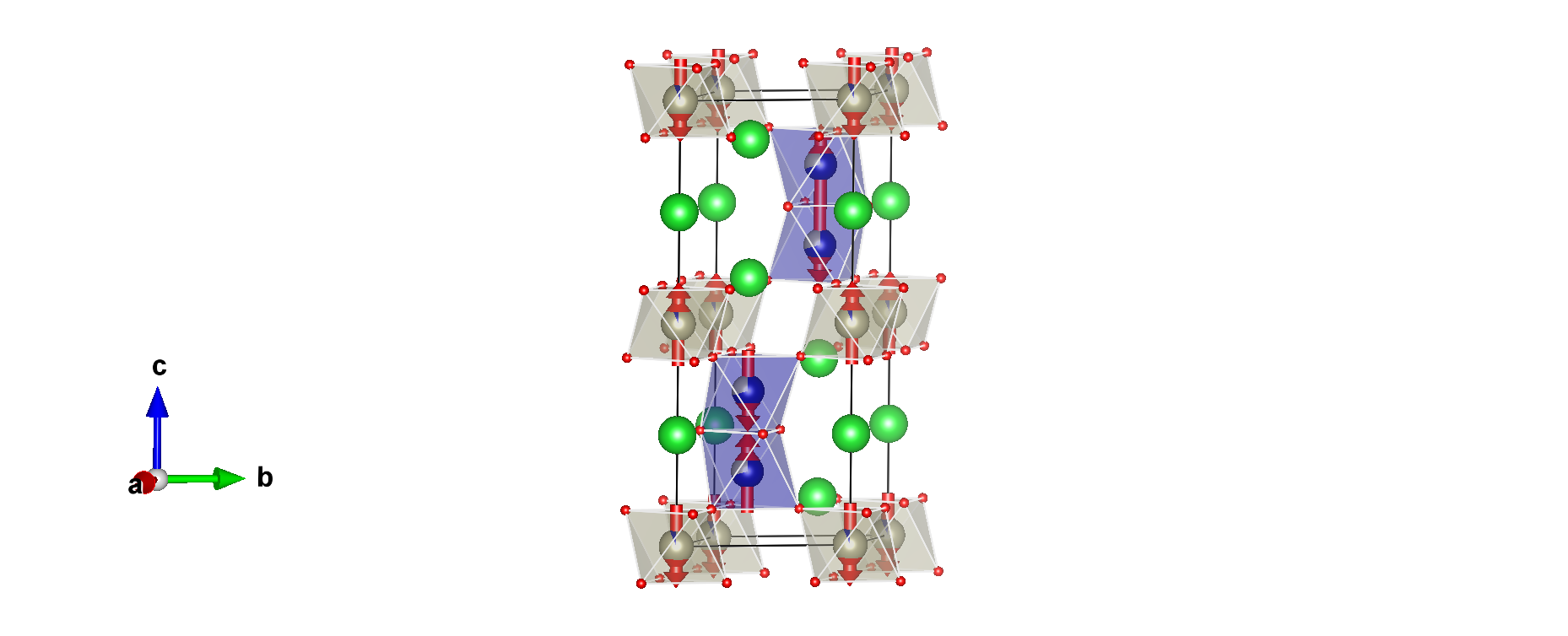

Non-magnetic atoms:

Label	Atom type	x	y	z	Occupancy	Multiplicity
Ba1	Ba	0.00000	0.00000	0.25000	1.	2
Ba2	Ba	0.33333	0.66667	0.40530	1.	4
O1	O	0.51380	0.02760	0.25000	1.	6
O2	O	0.83560	0.67120	0.42110	1.	12

Positions and magnetic moments of all atoms in unit cell, with magnetic moment relations explicitly given:

Magnetic atoms:

Set of atoms in the unit cell related by symmetry with the magnetic atom Re1:

Atom	x	y	z	Symmetry constraints on M	M_x	M_y	M_z
1	0.00000	0.00000	0.00000	0,0,m_z	0.00000	0.00000	-1.14000
2	0.00000	0.00000	0.50000	0,0,-m_z	0.00000	0.00000	1.14000

Set of atoms in the unit cell related by symmetry with the magnetic atom Cr1:

Atom	x	y	z	Symmetry constraints on M	M_x	M_y	M_z
1	0.00000	0.00000	0.00000	0,0,m_z	0.00000	0.00000	-2.53000
2	0.00000	0.00000	0.50000	0,0,-m_z	0.00000	0.00000	2.53000

Set of atoms in the unit cell related by symmetry with the magnetic atom Cr2:

Atom	x	y	z	Symmetry constraints on M	M_z
1	0.33333	0.66667	0.84030	0,0,m_z	2.53000
2	0.33333	0.66666	0.65970	0,0,-m_z	-2.53000
3	0.66667	0.33333	0.15970	0,0,m_z	2.53000
4	0.66667	0.33334	0.34030	0,0,-m_z	-2.53000

Set of atoms in the unit cell related by symmetry with the magnetic atom Re2:

Atom	x	y	z	Symmetry constraints on M	M_z
1	0.33333	0.66667	0.84030	0,0,m_z	1.14000
2	0.33333	0.66666	0.65970	0,0,-m_z	-1.14000
3	0.66667	0.33333	0.15970	0,0,m_z	1.14000
4	0.66667	0.33334	0.34030	0,0,-m_z	-1.14000

Non-magnetic atoms:

Set of atoms in the unit cell related by symmetry with the atom Ba1:

Atom	x	y	z
1	0.00000	0.00000	0.25000
2	0.00000	0.00000	0.75000

Set of atoms in the unit cell related by symmetry with the atom Ba2:

Set of atoms in the unit cell related by symmetry with the atom O1:

Set of atoms in the unit cell related by symmetry with the atom O2:

[Hide]

Label	Atom type	x	y	z	Occupancy	Multiplicity	Symmetry constraints on M	M_z	\|M\|
Re1	Re	0.00000	0.00000	0.00000	0.933	2	0,0,m_z	-1.14	1.14
Cr1	Cr	0.00000	0.00000	0.00000	0.067	2	0,0,m_z	-2.53	2.53
Cr2	Cr	0.33333	0.66667	0.84030	0.716	4	0,0,m_z	2.53	2.53
Re2	Re	0.33333	0.66667	0.84030	0.284	4	0,0,m_z	1.14	1.14

label	dim. small irrep	dim. full irrep	action	number of modes
mGM4+	1	1	primary	4

MAGNDATA: A Collection of magnetic structures with portable cif-type files
