Transformation matrix from the setting of the parent structure (a_p,b_p,c_p) to the working setting (a,b,c):

[Hide]

Symmetry operations of the magnetic space group in the setting used:

[Hide]

Transformation matrix from the working setting (a,b,c) to the standard setting of the magnetic space group (a_s,b_s,c_s):

[Hide]

Symmetry operations of the magnetic point group in the setting used:

[Hide]

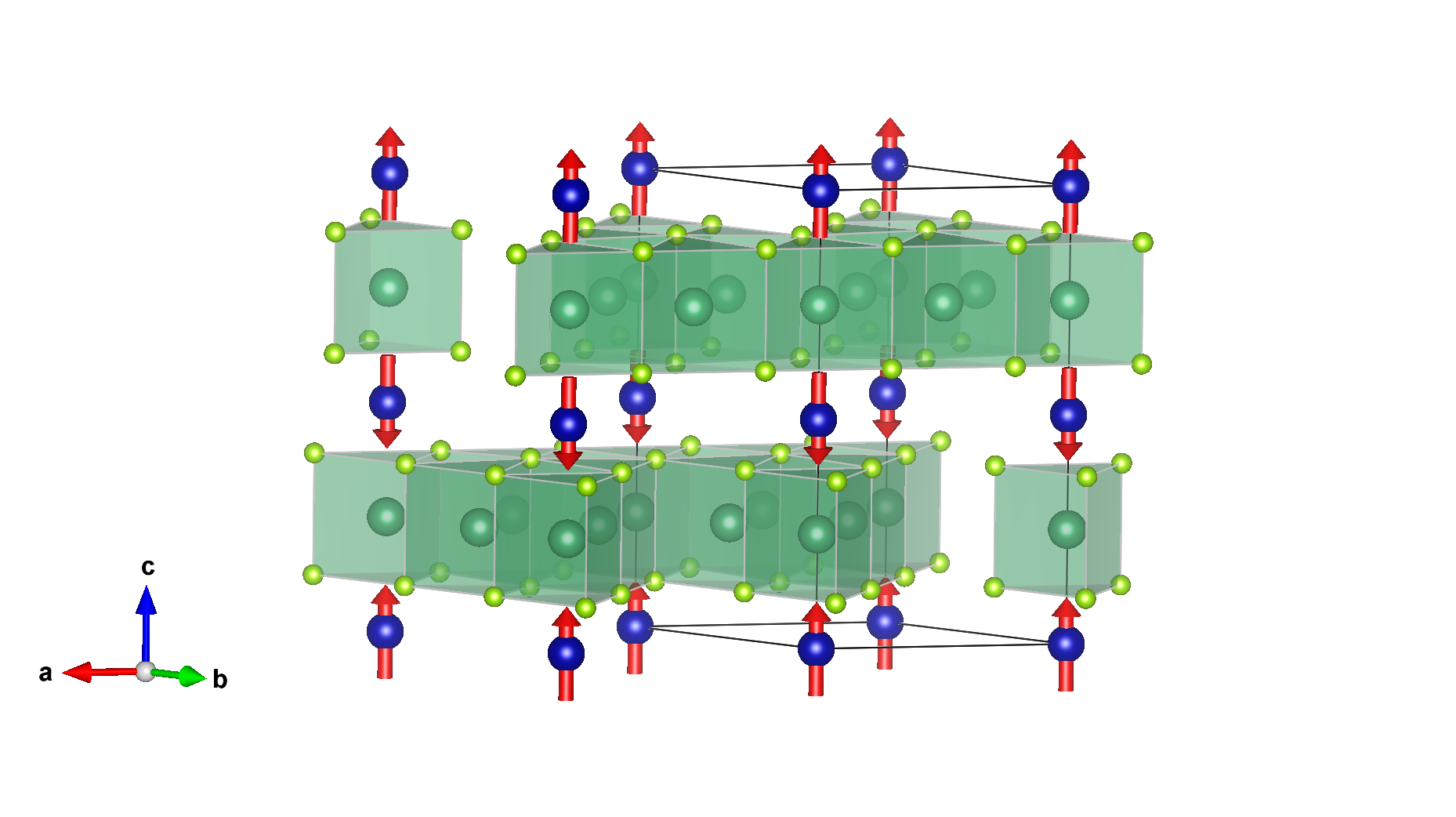

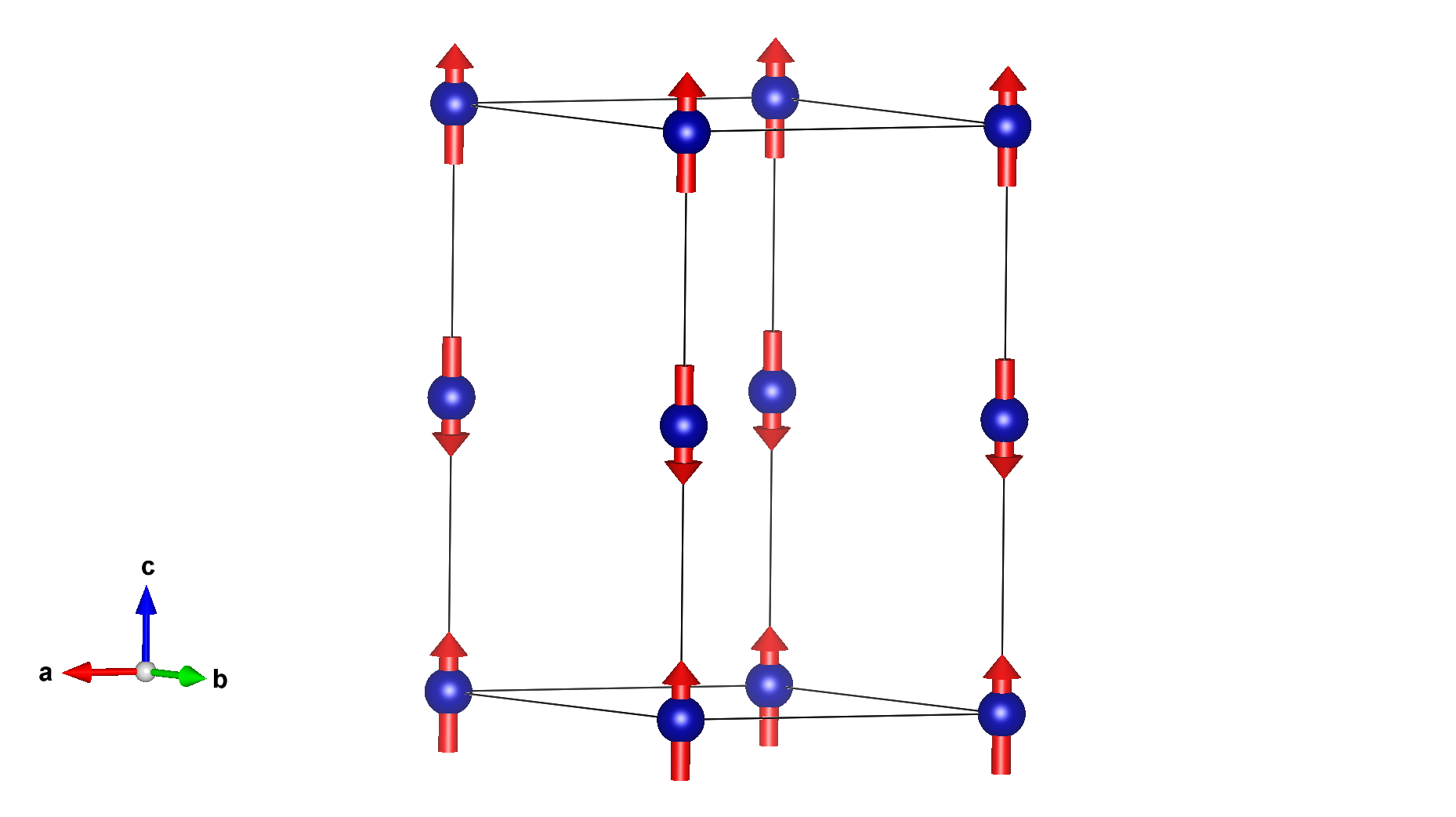

Magnetic atoms:

Label	Atom type	x	y	z	Multiplicity	Symmetry constraints on M	M_x	M_y	M_z	\|M\|
Co1	Co	0.00000	0.00000	0.00000	2	0,0,m_z	0.0	0.0	1.4(1)	1.40

Non-magnetic atoms:

Label	Atom type	x	y	z	Multiplicity
Nb1	Nb	0.00000	0.00000	0.25000	2
Nb2	Nb	0.50790	0.01580	0.25000	6
Se1	Se	0.83158	0.66316	0.61719	12
Se2	Se	0.33333	0.66667	0.89013	4

Atom	x	y	z	Symmetry constraints on M	M_x	M_y	M_z
1	0.00000	0.00000	0.00000	0,0,m_z	0.00000	0.00000	1.40000
2	0.00000	0.00000	0.50000	0,0,-m_z	0.00000	0.00000	-1.40000

Atom	x	y	z
1	0.00000	0.00000	0.25000
2	0.00000	0.00000	0.75000

Label	Atom type	x	y	z	Multiplicity	Symmetry constraints on M	M_x	M_y	M_z	\|M\|
Co1	Co	0.00000	0.00000	0.00000	2	0,0,m_z	0.0	0.0	1.4(1)	1.40

Atom	x	y	z	Symmetry constraints on M	M_x	M_y	M_z
1	0.00000	0.00000	0.00000	0,0,m_z	0.00000	0.00000	1.40000
2	0.00000	0.00000	0.50000	0,0,-m_z	0.00000	0.00000	-1.40000

label	dim. small irrep	dim. full irrep	action	number of modes
mGM4+	1	1	primary	1
