MAGNDATA - Collection of Magnetic Structures

Symmetry operations of the magnetic space group in the setting used:

[Hide]

Magnetic atoms:

Label	Atom type	x	y	z	Multiplicity	Symmetry constraints on M	M_x	M_y	M_z	\|M\|
Co1	Co	0.21200	0.25000	0.55100	4	m_x,0,m_z	2.6(1)	0.0	0.0	2.60
Co2	Co	0.25100	0.11000	0.50000	8	m_x,m_y,m_z	-3.0(1)	0.0	0.0	3.00

Non-magnetic atoms:

Label	Atom type	x	y	z	Multiplicity
La1	La	0.25000	0.04920	0.98630	8
La2	La	0.24800	0.17240	0.01570	8
O1	O	0.35300	0.25000	0.88900	4
O2	O	0.26000	0.03000	0.55500	8
O3	O	0.99500	0.10450	0.24500	8
O4	O	0.99700	0.11940	0.75800	8
O5	O	0.24800	0.18770	0.43100	8

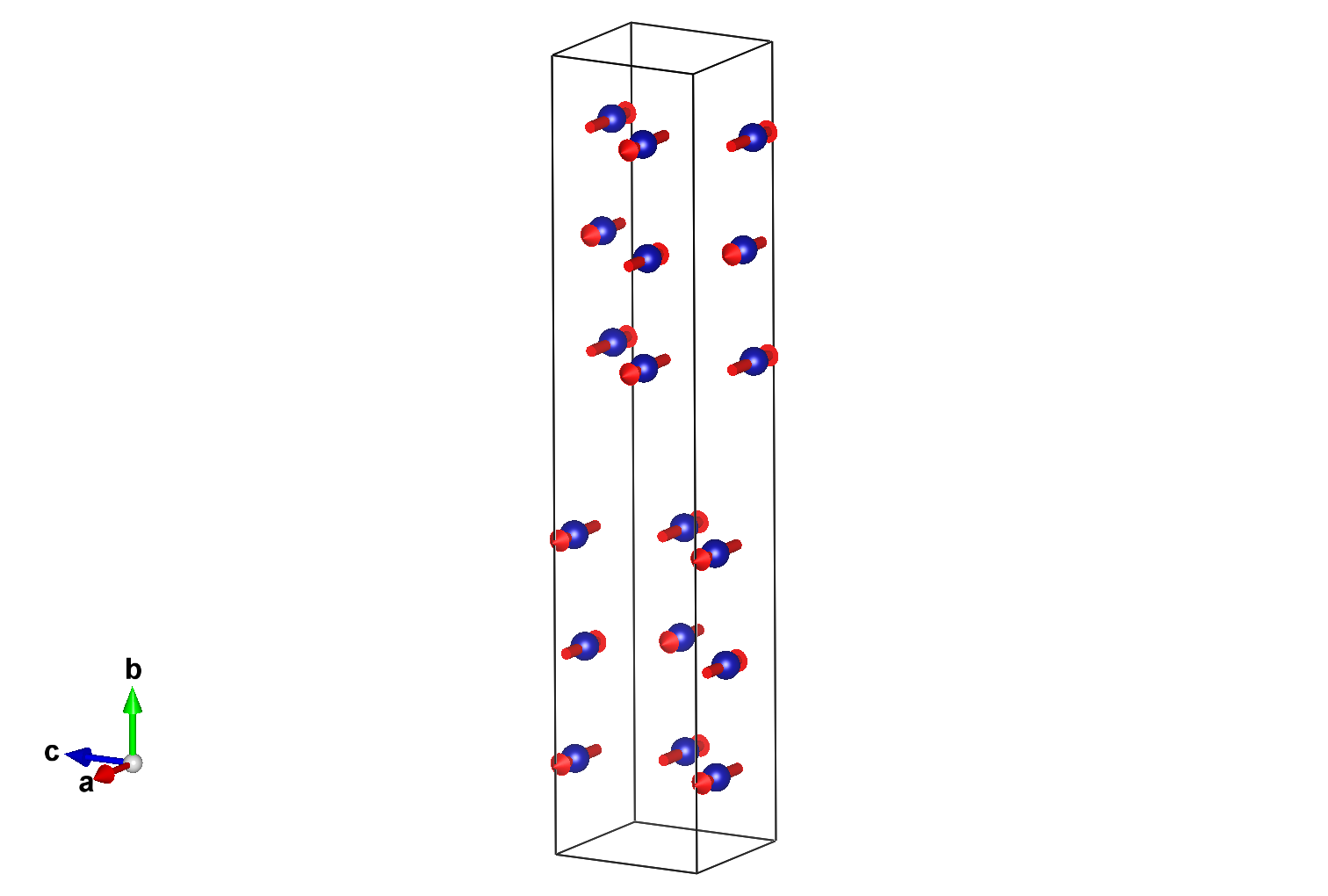

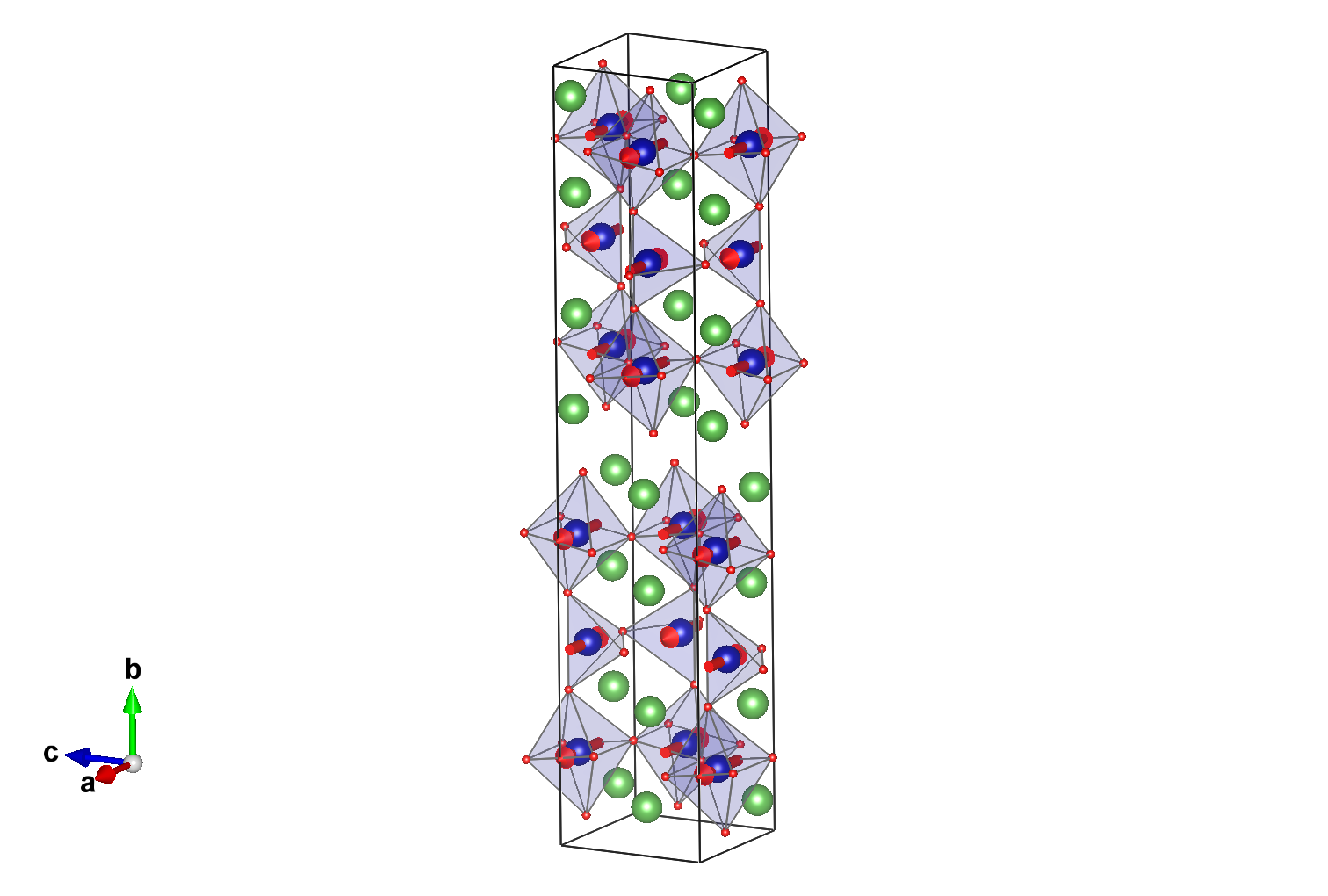

Positions and magnetic moments of all atoms in unit cell, with magnetic moment relations explicitly given:

Magnetic atoms:

Set of atoms in the unit cell related by symmetry with the magnetic atom Co1:

Atom	x	y	z	Symmetry constraints on M	M_x
1	0.21200	0.25000	0.55100	m_x,0,m_z	2.60000
2	0.78800	0.75000	0.44900	-m_x,0,-m_z	-2.60000
3	0.28800	0.75000	0.05100	m_x,0,-m_z	2.60000
4	0.71200	0.25000	0.94900	-m_x,0,m_z	-2.60000

Set of atoms in the unit cell related by symmetry with the magnetic atom Co2:

Atom	x	y	z	Symmetry constraints on M	M_x
1	0.25100	0.11000	0.50000	m_x,m_y,m_z	-3.00000
2	0.74900	0.61000	0.50000	-m_x,m_y,-m_z	3.00000
3	0.24900	0.61000	0.00000	m_x,-m_y,-m_z	-3.00000
4	0.75100	0.11000	0.00000	-m_x,-m_y,m_z	3.00000
5	0.75100	0.39000	0.00000	-m_x,m_y,m_z	3.00000
6	0.24900	0.89000	0.00000	m_x,m_y,-m_z	-3.00000
7	0.74900	0.89000	0.50000	-m_x,-m_y,-m_z	3.00000
8	0.25100	0.39000	0.50000	m_x,-m_y,m_z	-3.00000

Non-magnetic atoms:

Set of atoms in the unit cell related by symmetry with the atom La1:

Set of atoms in the unit cell related by symmetry with the atom La2:

Set of atoms in the unit cell related by symmetry with the atom O1:

Set of atoms in the unit cell related by symmetry with the atom O2:

Set of atoms in the unit cell related by symmetry with the atom O3:

Set of atoms in the unit cell related by symmetry with the atom O4:

Set of atoms in the unit cell related by symmetry with the atom O5:

[Hide]

Label	Atom type	x	y	z	Multiplicity	Symmetry constraints on M	M_x	M_y	M_z	\|M\|
Co1	Co	0.21200	0.25000	0.55100	4	m_x,0,m_z	2.6(1)	0.0	0.0	2.60
Co2	Co	0.25100	0.11000	0.50000	8	m_x,m_y,m_z	-3.0(1)	0.0	0.0	3.00

label	dim. small irrep	dim. full irrep	action	number of modes
mGM4-	1	1	primary	5
