Li2Ni2W2O9 (#0.1076)

view in Jmol
Download mcif file
Download vesta file (all atoms)
Download vesta file (magnetic atoms only)


working...

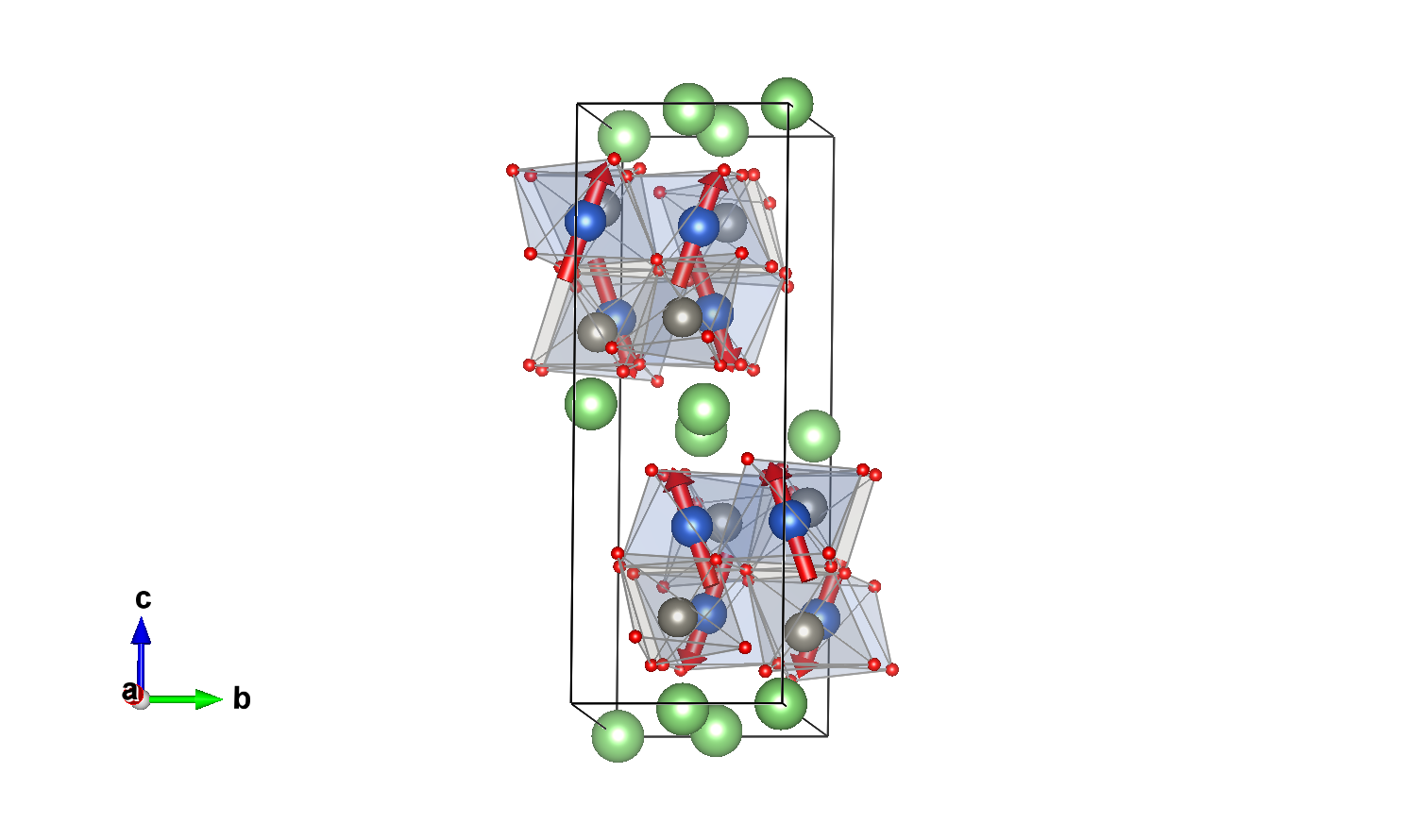

Magnetic structure with all atoms

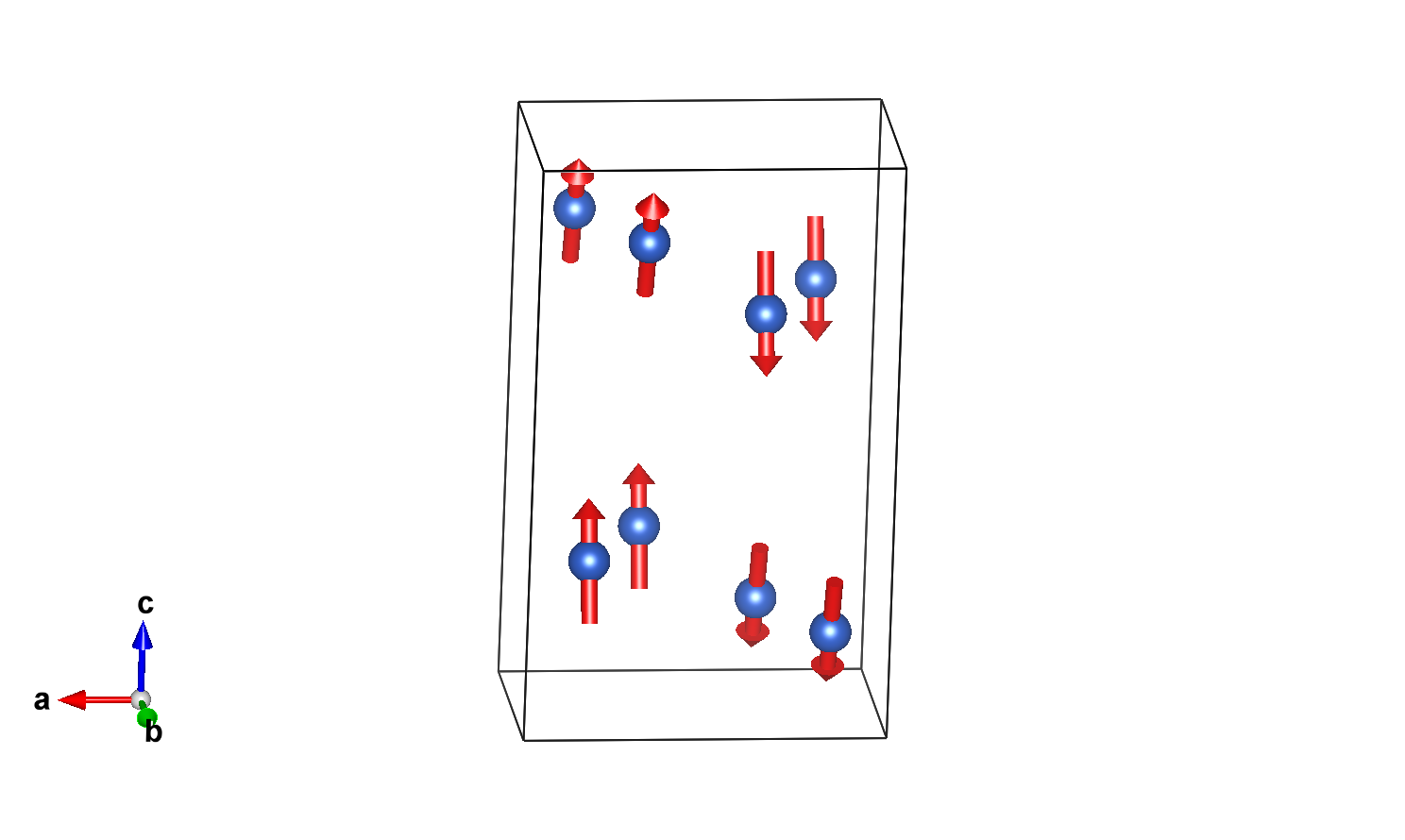

Magnetic structure with only magnetic atoms


Reference: Simon Redor, Maxim Avdeev, David Hrabovsky, Jean-Marie Tarascon, Gwenaelle Rousse, PHYSICAL REVIEW B (2024) 109 054105
DOI: 10.1103/PhysRevB.109.054105
Atomic positions from: same reference

Parent space group (paramagnetic phase): Pbcn (#60)
Propagation vector: k1 (0, 0, 0)

Transition Temperature: 8 K
Experiment Temperature: 3.5 K

Lattice parameters of the magnetic unit cell:
8.68486(18) 5.05677(10) 14.3133(3) 90.0000 90.0000 90.0000
Transformation from parent structure: (a,b,c;0,0,0)
    [View matrix form]

BNS Magnetic Space Group: Pb'c'n' (#60.425) (standard setting)
    [View symmetry operations]
Transformation to a standard setting: (a,b,c;0,0,0)
    [View matrix form]
Systematic absences for this Magnetic Space Group via

Magnetic Point Group: m'm'm' (8.5.28)
    [View symmetry operations]
Symmetry-adapted form of material tensors via
Symmetry-adapted form of material tensors for domain-related equivalent structures via

Positions and magnetic moments of symmetry independent atoms:
From now on, magnetic atoms are in boldface and colored in red. Magnetic moments are expressed in units of μB

     [Show only magnetic atoms]                                             Use MVISUALIZE to:
     [Show all the atoms]


LabelAtom typexyzMultiplicitySymmetry constraints on MMxMyMz|M|
Ni1Ni0.6642(6)0.5091(14)0.8136(2)8mx,my,mz0.00.51(6)1.49(5)1.57

    [Show all magnetic atoms in unit cell and their moment relations]



Active Irreps:
Irrep decomposition via


labeldim. small irrepdim. full irrepactionnumber of modes
mGM1- 1 1 primary 3


Comments:
Comments (symmetry):
