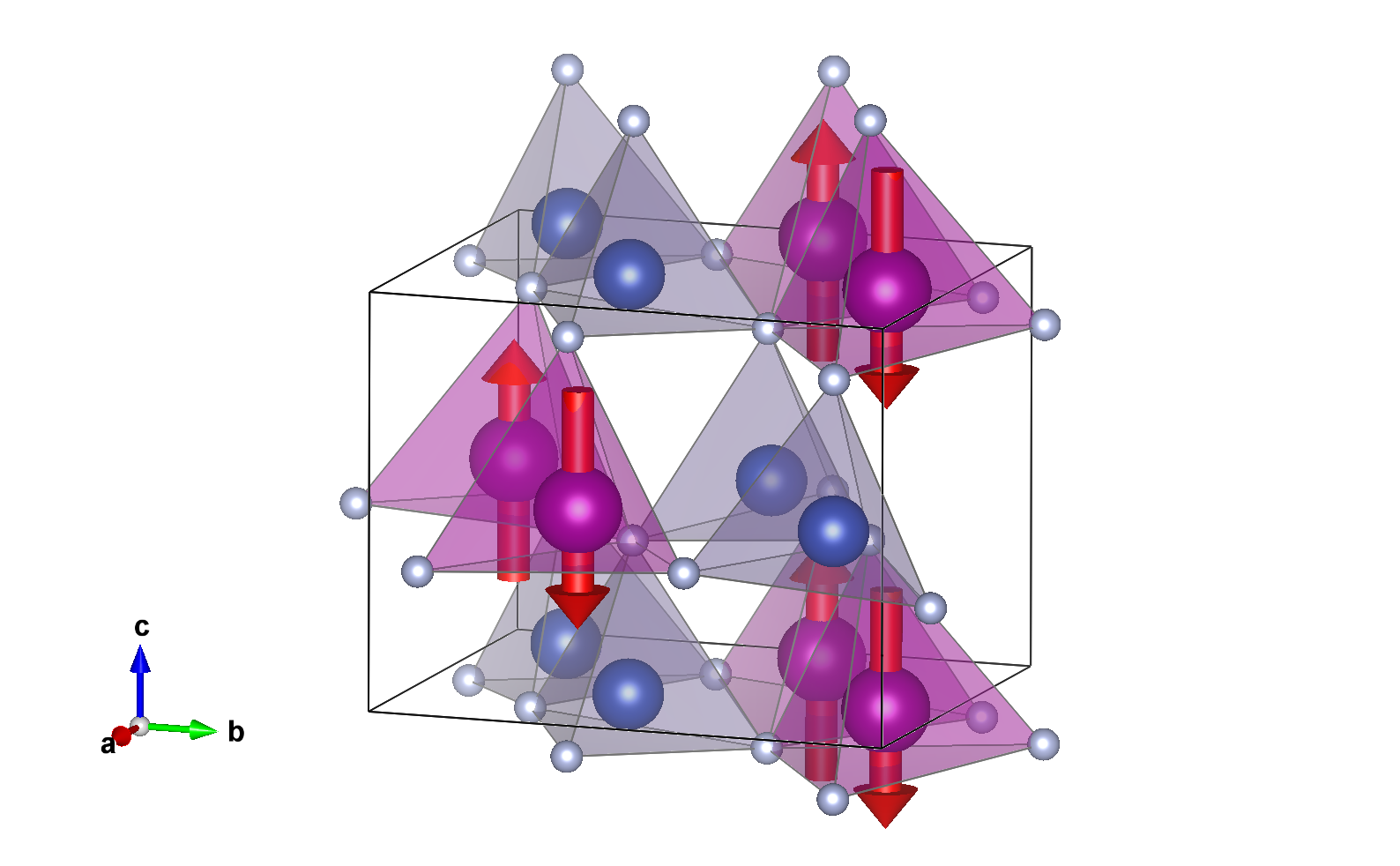

Positions and magnetic moments of all atoms in unit cell, with magnetic moment relations explicitly given:

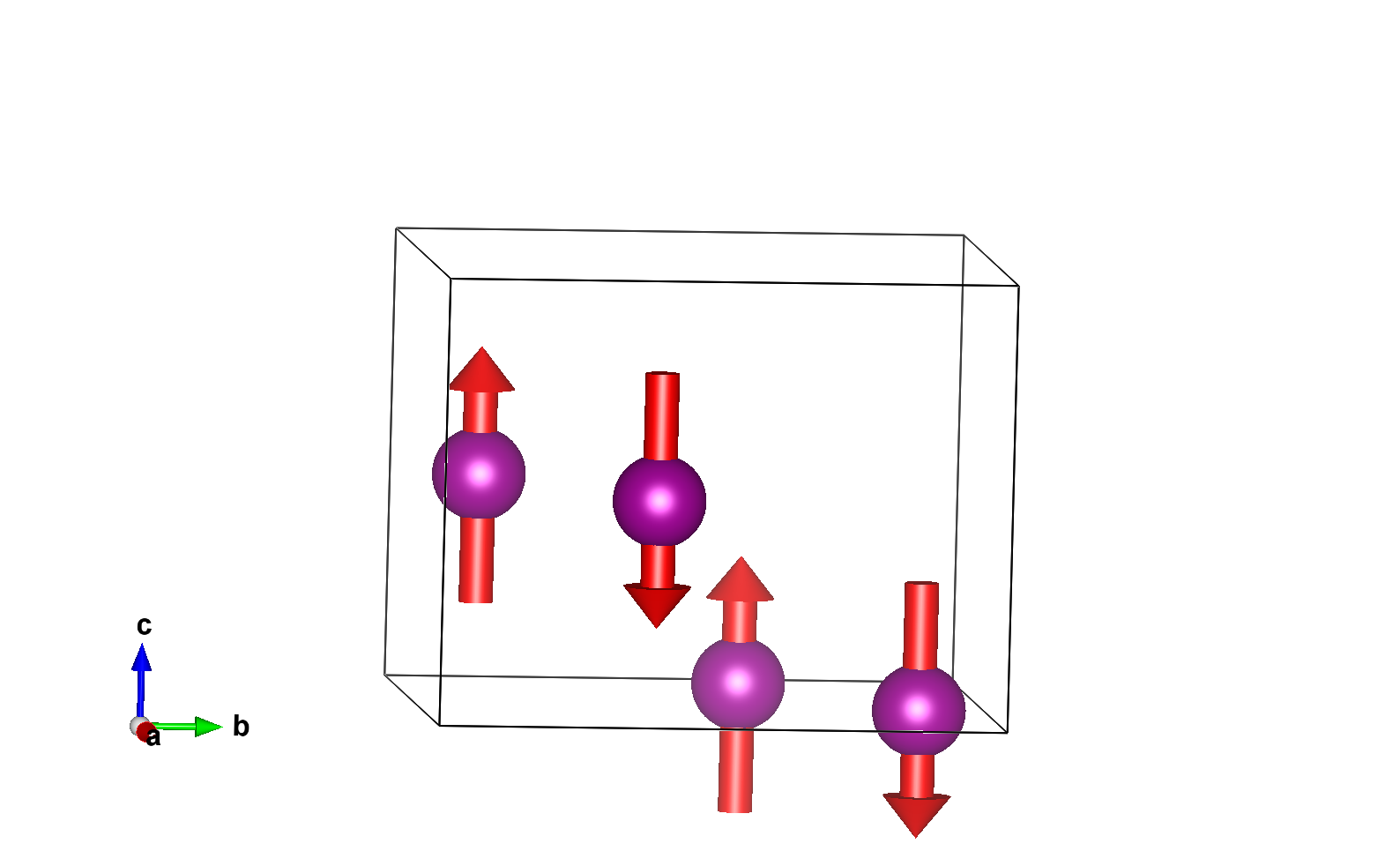

Magnetic atoms:
Set of atoms in the unit cell related by symmetry with the magnetic atom Mn1:
Atom | x | y | z | Symmetry constraints on M | Mx | My | Mz |
1 | 0.07600 | 0.61500 | 0.00000 | mx,my,mz | 0.00000 | 0.00000 | 3.50000 |
2 | 0.57600 | 0.88500 | 0.00000 | -mx,my,-mz | 0.00000 | 0.00000 | -3.50000 |
3 | 0.92400 | 0.38500 | 0.50000 | mx,my,-mz | 0.00000 | 0.00000 | -3.50000 |
4 | 0.42400 | 0.11500 | 0.50000 | -mx,my,mz | 0.00000 | 0.00000 | 3.50000 |
Non-magnetic atoms:
Set of atoms in the unit cell related by symmetry with the atom Ge1:
Atom | x | y | z |
1 | 0.07600 | 0.11700 | 0.99200 |
2 | 0.57600 | 0.38300 | 0.99200 |
3 | 0.92400 | 0.88300 | 0.49200 |
4 | 0.42400 | 0.61700 | 0.49200 |
Set of atoms in the unit cell related by symmetry with the atom N1:
Atom | x | y | z |
1 | 0.06300 | 0.11300 | 0.35600 |
2 | 0.56300 | 0.38700 | 0.35600 |
3 | 0.93700 | 0.88700 | 0.85600 |
4 | 0.43700 | 0.61300 | 0.85600 |
Set of atoms in the unit cell related by symmetry with the atom N2:
Atom | x | y | z |
1 | 0.09800 | 0.64200 | 0.40500 |
2 | 0.59800 | 0.85800 | 0.40500 |
3 | 0.90200 | 0.35800 | 0.90500 |
4 | 0.40200 | 0.14200 | 0.90500 |
