Nd2PdGe6 (#0.927)

view in Jmol
Download mcif file
Download vesta file (all atoms)
Download vesta file (magnetic atoms only)


working...

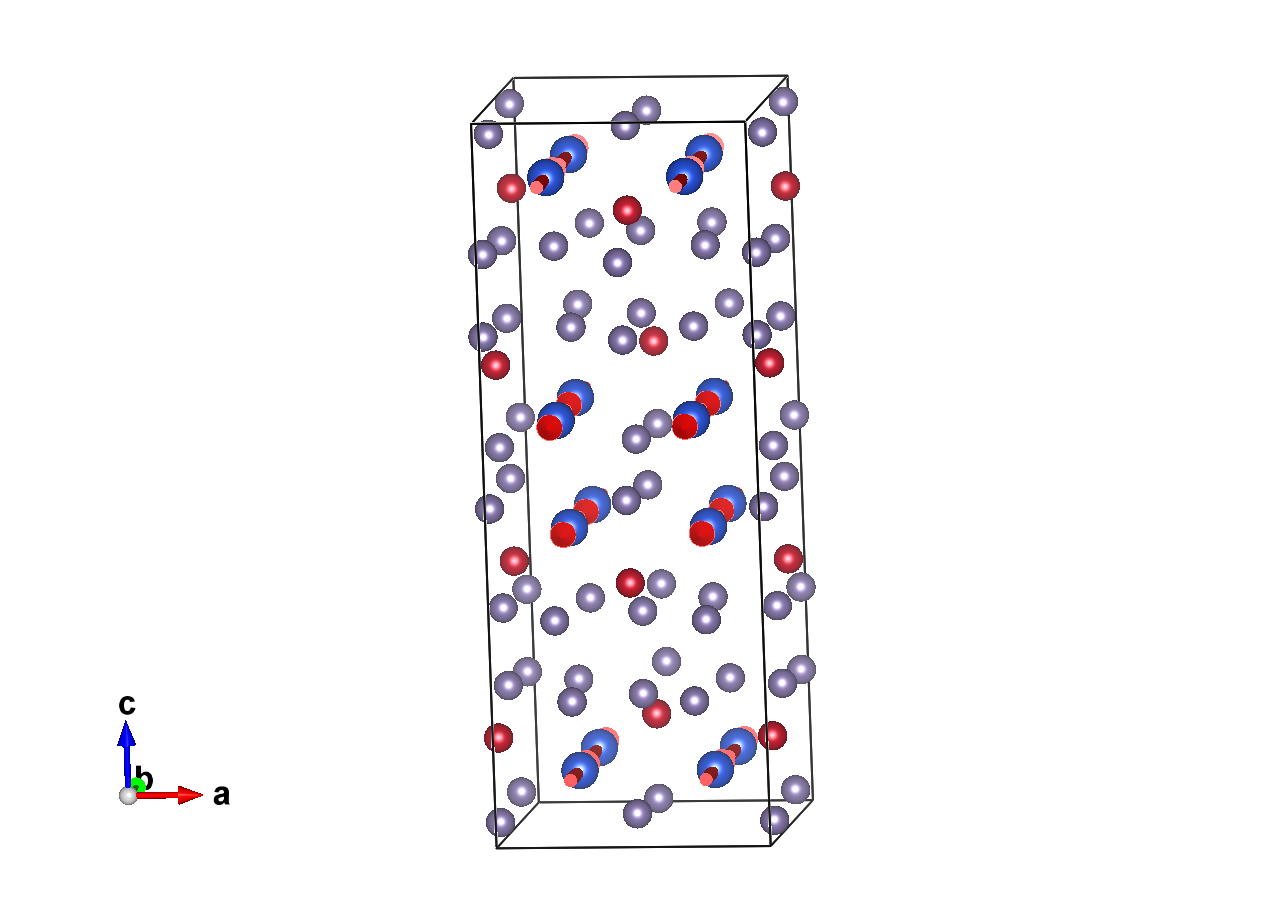

Magnetic structure with all atoms

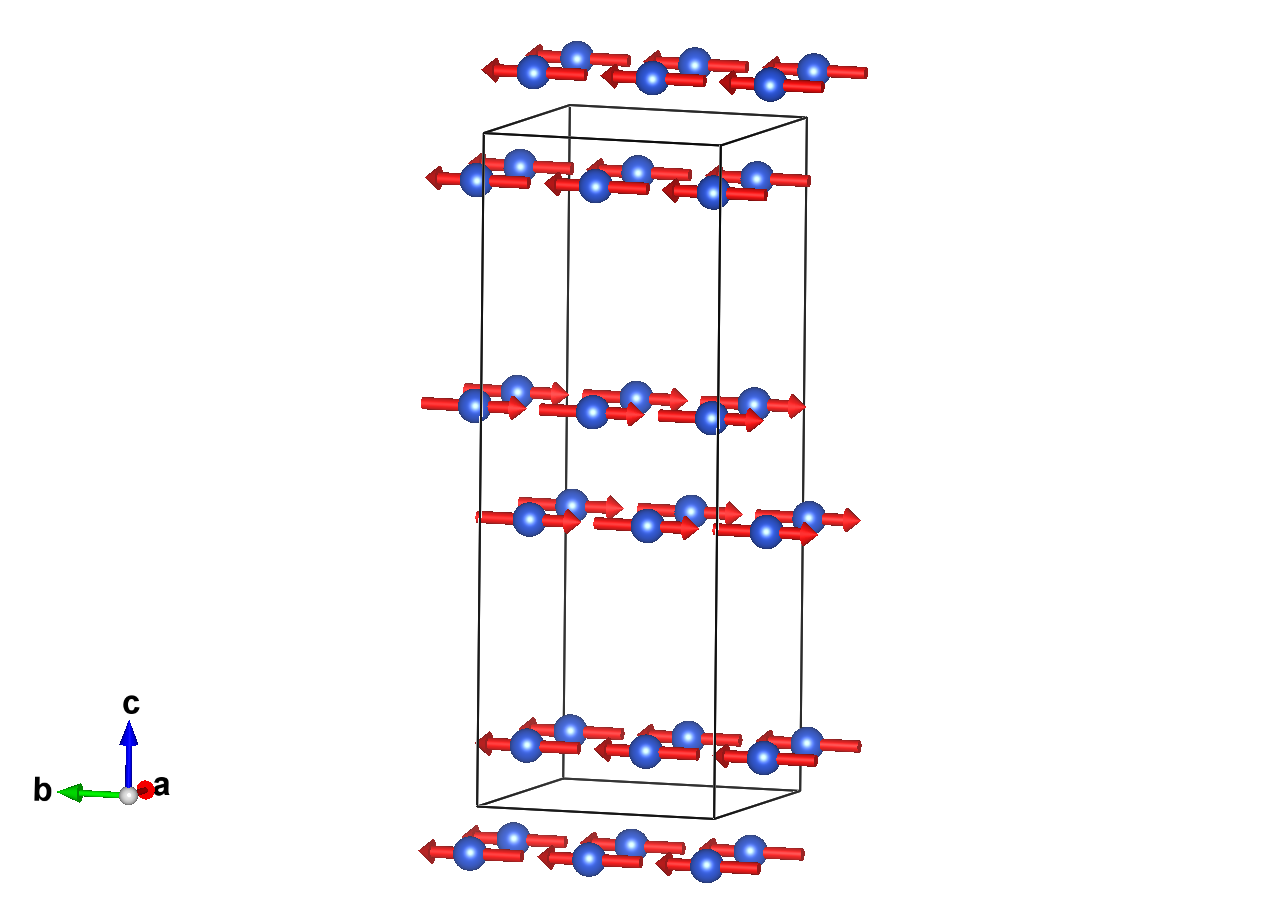

Magnetic structure with only magnetic atoms


Reference: B. Penc, S. Baran, A. Hoser, J. Przewoznik, A. Szytula, Journal of Magnetism and Magnetic Materials (2020) 514 167152
DOI: 10.1016/j.jmmm.2020.167152
Atomic positions from: same reference

Parent space group (paramagnetic phase): Cmce (#64)
Propagation vector: k1 (0, 0, 0)

Transition Temperature: 6.5 K
Experiment Temperature: 1.5 K

Lattice parameters of the magnetic unit cell:
8.3099 8.1588 21.9964 90.00 90.00 90.00
Transformation from parent structure: (a,b,c;0,0,0)
    [View matrix form]

BNS Magnetic Space Group: Cm'c'a (#64.474) (standard setting)
    [View symmetry operations]
Transformation to a standard setting: (a,b,c;0,0,0)
    [View matrix form]
Systematic absences for this Magnetic Space Group via

Magnetic Point Group: m'm'm (8.4.27)
    [View symmetry operations]
Symmetry-adapted form of material tensors via
Symmetry-adapted form of material tensors for domain-related equivalent structures via

Positions and magnetic moments of symmetry independent atoms:
From now on, magnetic atoms are in boldface and colored in red. Magnetic moments are expressed in units of μB

     [Show only magnetic atoms]                                             Use MVISUALIZE to:
     [Show all the atoms]


LabelAtom typexyzMultiplicitySymmetry constraints on MMxMyMz|M|
Nd1Nd0.25320.38230.082316mx,my,mz0.02.11(2)0.02.11

    [Show all magnetic atoms in unit cell and their moment relations]



Active Irreps:
Irrep decomposition via


labeldim. small irrepdim. full irrepactionnumber of modes
mGM2+ 1 1 primary 3


Comments:
Comments (symmetry):
